Export agentgateway access logs as OTLP LogRecord objects to an OpenTelemetry Collector or any compatible backend.

Log export happens in addition to stdout output, so you can send logs to a collector without losing local visibility.

This guide walks through setting up an OpenTelemetry Collector to receive access logs from agentgateway.

The way you set up the collector depends on how you installed agentgateway.

Binary and Docker installations

Run the OTel Collector as a Docker container on the same host as agentgateway.

1. Create an otel-collector-config.yaml file that defines an OTLP receiver and a logs pipeline.

   cat > otel-collector-config.yaml << 'EOF'
   receivers:
     otlp:
       protocols:
         grpc:
           endpoint: 0.0.0.0:4317
   processors:
     batch:
   exporters:
     debug:
       verbosity: detailed
   service:
     pipelines:
       logs:
         receivers: [otlp]
         processors: [batch]
         exporters: [debug]
   EOF

   Replace the debug exporter with the exporter for your logging backend (for example, Loki, Elasticsearch, or an OTLP-compatible storage system).

2. Start the OTel Collector container and mount your config file.

   docker run -d --name otel-collector \
     -p 4317:4317 \
     -v $(pwd)/otel-collector-config.yaml:/etc/otelcol/config.yaml \
     otel/opentelemetry-collector:latest

3. Configure agentgateway to send access logs to the collector. You can make this change in the UI or in your configuration file.

   UIConfig file

   Whether the UI can save depends on your storage mode. For more information, see Save changes from the UI.

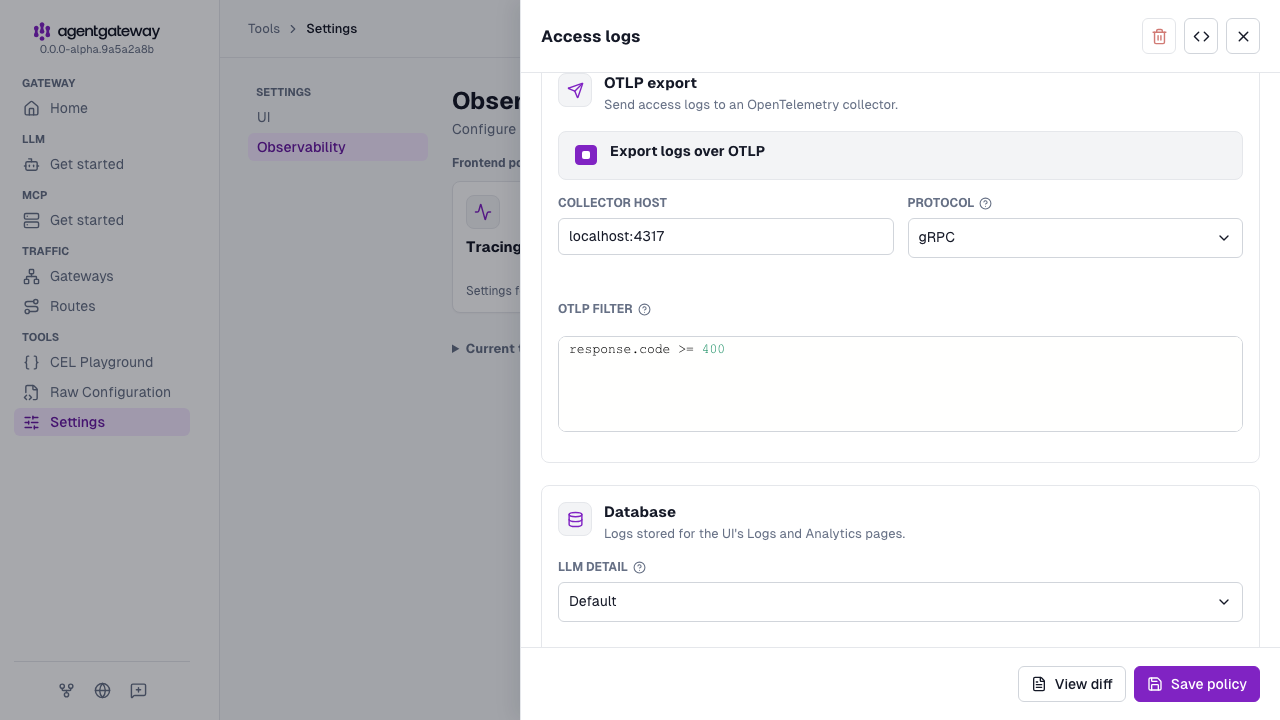

   1. Open the Settings > Observability page, such as http://localhost:15000/ui/settings/observability, and click the Access logs card.

   2. In the OTLP export section, select Export logs over OTLP.

   3. Keep localhost:4317 for the Collector host and gRPC for the Protocol.





   4. Click Save policy. The UI saves the frontendPolicies.accessLog.otlp section in your configuration.

   # yaml-language-server: $schema=https://agentgateway.dev/schema/config
   frontendPolicies:
     accessLog:
       otlp:
         host: localhost:4317

4. Send a request through agentgateway, then check the collector output to verify that log records are arriving.

   docker logs otel-collector

   Each proxied request appears as a LogRecord entry in the collector output. Look for a block that starts with LogRecord # and includes attributes such as gateway, http.request.method, url.path, and http.response.status_code. The HTTP attributes use the OpenTelemetry semantic convention names. The records belong to the agentgateway.access instrumentation scope, which the collector prints in the InstrumentationScope line of the ScopeLogs block that contains the record.

5. When you are done, remove the OTel Collector container.

   docker rm -f otel-collector

Helm installations

Deploy the OTel Collector into your cluster by using the OpenTelemetry Helm chart and point agentgateway at its service.

1. Add the OpenTelemetry Helm repository.

   helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts
   helm repo update

2. Create a values.yaml file that defines the collector pipeline.

   mode: deployment
   config:
     receivers:
       otlp:
         protocols:
           grpc:
             endpoint: 0.0.0.0:4317
     processors:
       batch:
     exporters:
       debug:
         verbosity: detailed
     service:
       pipelines:
         logs:
           receivers: [otlp]
           processors: [batch]
           exporters: [debug]

   Replace the debug exporter with the exporter for your logging backend.

3. Install the OTel Collector chart.

   helm install otel-collector open-telemetry/opentelemetry-collector \
     -n monitoring --create-namespace \
     -f values.yaml

4. Verify that the collector pod is running.

   kubectl get pods -n monitoring

5. Update your agentgateway values.yaml to send access logs to the collector service. The chart takes the agentgateway configuration under the top-level config field.

   config:
     frontendPolicies:
       accessLog:
         otlp:
           host: otel-collector.monitoring.svc.cluster.local:4317

6. Apply the change with a Helm upgrade.

   helm upgrade -i agentgateway-standalone \
     oci://cr.agentgateway.dev/charts/agentgateway-standalone \
     --namespace agentgateway-system \
     --version 0.0.0-latest-dev \
     --reuse-values \
     -f values.yaml

7. Send a request through agentgateway, then check the collector logs to verify that log records are arriving.

   kubectl logs -n monitoring deployment/otel-collector

   Each proxied request appears as a LogRecord entry. Look for a block that starts with LogRecord # and includes attributes such as gateway, http.request.method, url.path, and http.response.status_code. The HTTP attributes use the OpenTelemetry semantic convention names. The records belong to the agentgateway.access instrumentation scope, which the collector prints in the InstrumentationScope line of the ScopeLogs block that contains the record.

8. When you are done, remove the OTel Collector and the monitoring namespace.

   helm uninstall otel-collector -n monitoring
   kubectl delete namespace monitoring

Other configurations

Review other common configurations when exporting access logs to an OTLP-compatible backend.

Filter logs before export

You can filter which access logs are exported to your OTLP backend by setting the accessLog.otlp.filter field. When otlp.filter is not set, the top-level filter (frontendPolicies.accessLog.filter) is used as a fallback for OTLP export as well. When otlp.filter is set, it takes precedence over the top-level filter for OTLP export only, so you can send a different subset of logs to your OTLP backend than to stdout and the database.

The following example sends only error responses to the OTLP collector while logging all requests to stdout.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    otlp:
      host: localhost:4317
      filter: 'response.code >= 400'

The following example logs only error responses to stdout, the database, and the OTLP collector. Because no otlp.filter is set, the top-level filter applies to all three backends.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    filter: 'response.code >= 400'
    otlp:
      host: localhost:4317

The following example logs only error responses to stdout and the database, but sends all requests to the OTLP collector. To override the top-level filter for OTLP, set otlp.filter explicitly.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    filter: 'response.code >= 400'
    otlp:
      host: localhost:4317
      filter: 'true'

Customize exported fields

You can add or remove fields to the log entry that you export to the OTLP endpoint. The following example adds a trace_id field from the x-trace-id request header and removes the server.address field.

The remove list matches the attribute names in the OTLP record, which are the OpenTelemetry semantic convention names, such as server.address, url.path, and http.response.status_code. The stdout log keeps the http.host, http.path, and http.status names, and the OTLP fields setting does not change it. A name that does not appear in the OTLP record, such as http.host, removes nothing.

The UI has no field for otlp.fields, so set it in your configuration file.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    otlp:
      host: localhost:4317
      fields:
        add:
          trace_id: 'request.headers["x-trace-id"]'
        remove:
          - server.address
